Vehicle Single Loop Detector for Digital Inductive Sliding Gate Motor

Place of Origin China
Nazwa handlowa WONSUN
Orzecznictwo CE, ISO, SGS
Model Number WSTP-157
Minimalne zamówienie 1 SZT.
Cena negotiation
Szczegóły pakowania Zapakowana w folię bąbelkową, po pierwsze, a następnie wzmocnione łko zewnętrzne opakowanie.
Czas dostawy 3-7 dni roboczych po otrzymaniu płatności
Zasady płatności T / T, Western Union, Money Gram, Alibaba Trade Assurance, Paypal itp.,
Możliwość Supply 1000 zestawów / miesiąc

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Szczegóły Produktu
Name Vehicle Single Loop Detector for Digital Inductive Sliding Gate Motor Power Suppply DC 24V, 12V
Model Number WSTV-410 Vehicle Loop Detector Dimensions 78x40x108 mm (WxHxL)
Reaction time 100ms Output Signal Type Exist Pulse
High Light

car loop detector

,

sliding gate rack

Zostaw wiadomość
opis produktu

Vehicle Single Loop Detector for Digital Inductive Sliding Gate Motor



Application Scope:



♦ Parking lot entrances vehicle detection
♦ Parking lot space information acquisition system
♦ Electronic police traffic lights snap shot system
♦ Traffic monitoring system



Main Features:



Reset Switch. Pressing the reset switch enables the detector to be manually reset during commissioning and
testing. This results in the detector re-tuning the sensing loop and becoming ready for vehicle detection.
Switch selectable Sensitivity. The detect sensitivity is the minimum change in inductance required to produce a
detect output. (%L/L). Eight sensitivity settings are available on the switches to allow flexibility in configuration.
Sensitivity Boost. This feature sets the undetect level to maximum sensitivity and is used to prevent loss of
detection of high-bed vehicles.
Filter Option. This option is used to provide a delay of 2 Seconds between detection of the vehicle and switching
of the output relay. This delay is normally used to prevent false detection of small or fast moving objects.
Extend Option. When switched on this feature extends the presence output relay for 2 Seconds after the vehicle
has left the loop.
Permanent Presence. This feature ensures detection of the vehicle will be maintained when the vehicle is
parked over the loop for extended periods.
Pulse Relay Selection. The Pulse relay may be configured to energise on detection of a vehicle or to energise
when the vehicle leaves the loop.
Selectable Pulse Time. This feature sets the length of time that the pulse relay will be energised. 1 Second or 0.2 Second.



Technical Data
Supply voltage: 220V AC , 115V AC,24VDC/AC,12V DC/AC
( See the label on the detector)
Voltage tolerance AC +10% / -15%
Voltage tolerance DC ±15%
Power Consumption 4.5VA
Output relays 240V/5A
Operating temperature -220°C to +65°C
Storage temperature -40°C to +85°C
Frequency range 20 kHz to 170 kHz
Reaction time 100ms
Signal holding time Unlimited
Sensitivity Adjustable in 3 increments
Loop inductance Total loop plus connection wiring:
50μH to 1000μH. Ideal is 100μH to 300μH
Loop connection wiring Maximum length 20 meters,
twisted at least 20 times per meter
Size of Housing 78x40x108 mm (L x W x H)

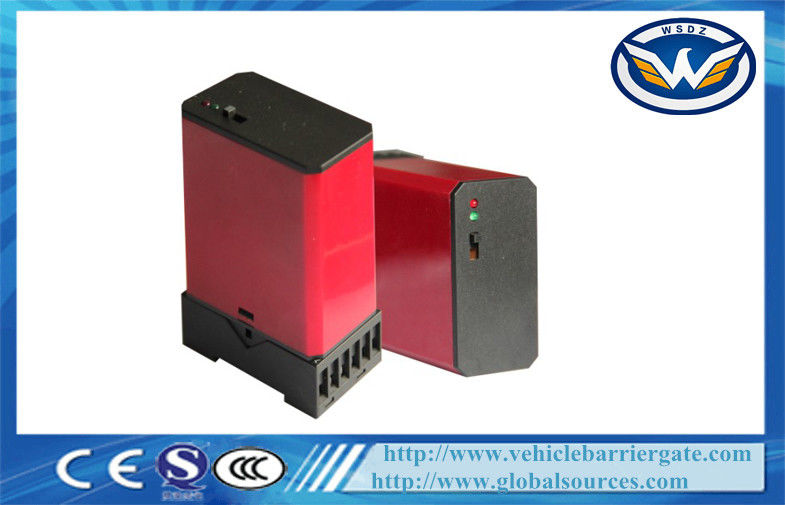

Vehicle Single Loop Detector for Digital Inductive Sliding Gate Motor 0Vehicle Single Loop Detector for Digital Inductive Sliding Gate Motor 1Vehicle Single Loop Detector for Digital Inductive Sliding Gate Motor 2
