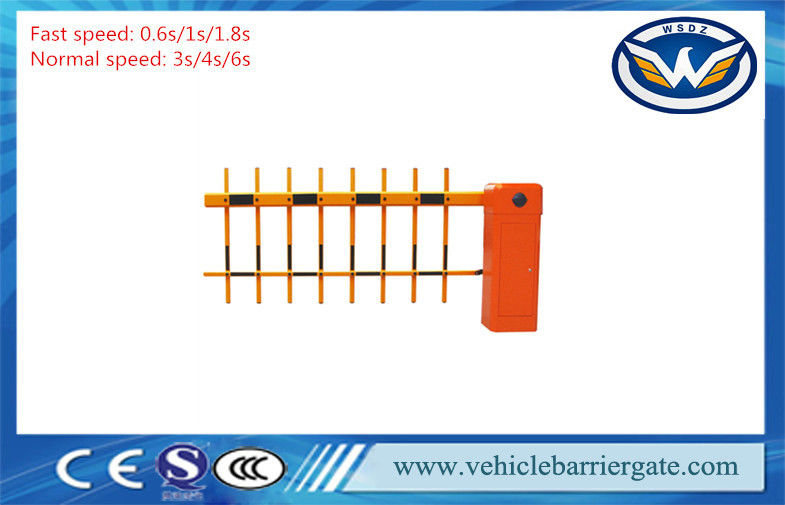

Automatic Straight Boom Car Park Entrance Barriers With 2 Fence Arm

  • Automatic Straight Boom Car Park Entrance Barriers With 2 Fence Arm
Miejsce pochodzenia China
Nazwa handlowa WONSUN
Orzecznictwo CE, ISO, SGS
Numer modelu WSTP-115
Minimalne zamówienie 1 SZT.
Cena negotiation
Szczegóły pakowania Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Czas dostawy 3-7 dni roboczych po otrzymaniu płatności
Zasady płatności T / T, Western Union, Money Gram, Alibaba Trade Assurance, Paypal itp.,
Możliwość Supply 1000 zestawów / miesiąc

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Szczegóły Produktu
Operation time 0.6s, 1s, 1.8s, 3s, 6s Product name 5 Million Operation Times Automatic Traffic Barrier Gate With 2 Fence Arm
Housing Dimension 335 * 335 * 935 Mm Color yellow, Orange, Black, Blue, customize optional
Rating Voltage AC 220/110V±10%, 50/60Hz Power Supply AC 220V / 110V
High Light

access control barriers and gates

,

road barrier gate
Zostaw wiadomość
opis produktu

5 Million Operation Times Automatic Traffic Barrier Gate With 2 Fence Arm





Automatic Barrier Gate Arm Optional:



1. Straight boom arm length is 1-6 m, Speed time is 6S

2. Straight boom arm length is 1-4.5m. Speed time is 1.8s

3. Straight boom arm length is 1-3 m, Speed time is 1s

4. Straight boom arm length is 1-2.5m, Speed time is 0.6s





Functions & Features


1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring

breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)





Techinical data:



Type



WSTP-115;WSTP-115B;WSTP-116; WSTP-117. WSTP-118, WSTP-119,

WSTP-120,WSTP-121,WSTP-122,WSTP-123
Operation time



0.6s, 1s, 1.8s, 3s, 6s. Customized


Arm Type



Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy

Fence Arm: Two or three fence arm, Max 6 meters, aluminum alloy
Material



Galvanized plate or Cold roll plate, 2mm thickness sheet

3 years without rust, shedding and fading
Size



320*280*935 mm
Spring And Bearing



Heat Treatment: more durable, more than 5 million times through operation testing
Rating Power



120W
Rating Voltage



AC 220V/110V±10%, 50/60HZ
Remote Control Distance



Usually more than 30 meters, if there is less obstacles, even 50 meters or more
Packing Size



1020*375*467mm , with seven layers carton case

inside with air bubble film for protection
G.W



50 KG
Delivery



By Sea: big order(more than 100 sets), Cheap, suggested

By Air: small order(1-15 sets), quick and cheap, suggested
Payment



Sample: full payment

Order: usually 40% advance deposite, balance before shipment
Advantages



1. Professional Manfacturer for more 8 years

2. Mould Production, High Accuracy

3. Heat Treatment, more durable than normal

4. Better Service from Professional Work Team





Parking & Shipping:



1. Strong carton case with cushion for safety, air bubble film inside for protect  ing the apperance

from damaging.

2. As for wooden crate packing, it is USD$ 10/ps; for wooden case packing, it is USD$ 32/ps.

3. As for shipping, we can send you the goods by air, sea and express, which according to your

detail requirements.





Each barrier gate will include:



1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book





Communication with customers

1)     Q: Connected power and press open/close button but traffic barrier gate no action?



A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button,traffic barrier gate will move but even when

it is at right position, the motor still running and not stop?


A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but traffic barrier gate arm no action?


A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical &

180° horizontal)?


A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal











Communication with customers:



1. Motor works but there is no reaction on the arm.
a. Please check whether the clutch device is locked or not.
2. There is too much vibrant when the boom is rising or falling.
a. Please check whether the shock absorption rubber is broken or not, if yes, change a new one.
b. Please check whether the balance spring is overused and distorted. If yes, change a new one.
b. Please check whether the balance spring is overused and distorted.If yes, change a new one, or spin

    bottom adjust nut.
3. The boom could not rise up or fall down to the end.
a. When change a long boom to a short one, please readjust it.
b. The sensor does not plug well, please chek it.
c. The " Speed adjust switch" is wrong adjust, please readjust it.
4. The distance of the remote control decreases.
a. Check whether the charge capacity of the remote controller is enough or not.
5. There is no reaction when pressing the remote controller buttons.
a, Please check whether the power is supplied to the barrier gate or not.
b. Please check whether the fuse is burnt out or not.
c. Please check whether the code both in the remote controller and the control board are accordant or not.
6 There is no reaction on the motor when the user changes a control board.
a. Please check the capacitance is correctly fixed or not.
b. Please check the sensor is right inserted or not.
