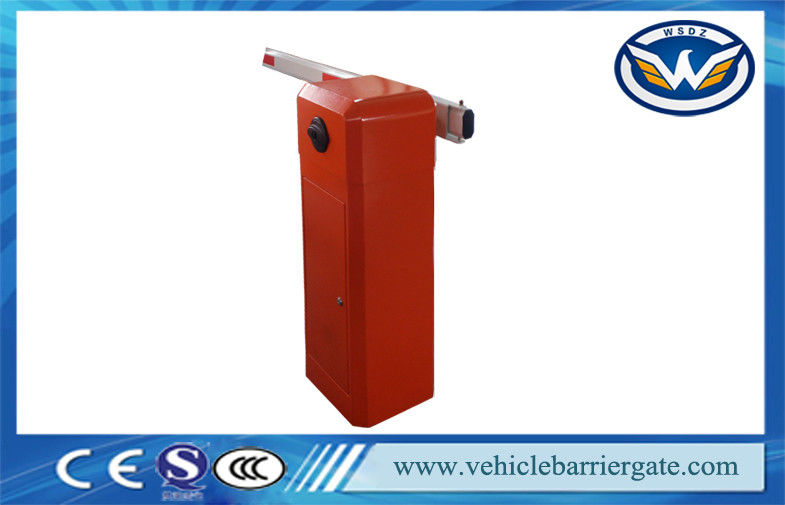

LED Light Rubber Bar Automatic Electric Boom Gates For Parking Lot System

Place of Origin China
Nazwa handlowa WONSUN
Orzecznictwo CE, ISO, SGS
Model Number WST-115
Minimalne zamówienie 1 SZT.
Cena negotiation
Packaging Details Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Czas dostawy 3-7 dni roboczych po otrzymaniu płatności
Zasady płatności T / T, Western Union, Money Gram, Alibaba Trade Assurance, Paypal itp.,
Możliwość Supply 1000 zestawów / miesiąc

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Szczegóły Produktu
Housing dimension 335 * 335 * 935 mm Housing color Bule, Orange, White
Arm length & height 100* 45 mm/ 80*45mm(swing out ) Arm material Aluminum alloy
Arm length Max. 6mtrs Housing material 2mm cold roller steel plate
High Light

security boom gate

,

electric boom barrier

Zostaw wiadomość
opis produktu

LED Light Rubber Bar Automatic Boom Barrier For Parking Lot System




Quick Detail:

Name: Automatic barrier gate
Speed:1s,1.8s.3s 6 seconds

Size: 320*280*932 mm

Operation time: 1s, 1.8s, 3s, 6s, optional

Arm type: Straight arm,  folding arm, fence arm, optional

Arm length: Max 6 meter with aluminum alloy

Rating voltage: AC 220/110V±10%, 50/60HZ



Model Selection and Differences



Model

Boom Shape

Max Boom Length

Speed

WST-115 Straight arm 3M 1S

WST11561

180 degree, Articulated boom

5m

6 seconds

WST11562

180 degree, Articulated boom

3m

3 seconds












Functions & Features

1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)



Basic Features:

1. By-security. The barrier gate will automatically go back when meet obstacles during closing.

2. AC motor is more powerful and no maintenance.

3. Barrier Beam/arm can be chosen from 3 meters to 6 meters, and barrier gate

4. closing time is also arranged from 1 second to 6 seconds.

5. The barrier gate can be both right-installed and left-installed.

6. All the operation process is soft without any noise and shaking.

7. Infrared photocell interface, Loop detector interface and IC system

8. interface are reserved for the other functions.

9. Green light and red light are used inside for indication the position of the beam.





Specifications



Model

WSTP115

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44



With WONSUN, your job gets easier.


Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.





Service Items



1.One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining  authority of this product instruction and service article belong to the production factory.



Communication with customers

1)   Q: Motor running but automatic barrier gate arm no action?

A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


2)  Q: When opening/closing, automatic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?

A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal position
