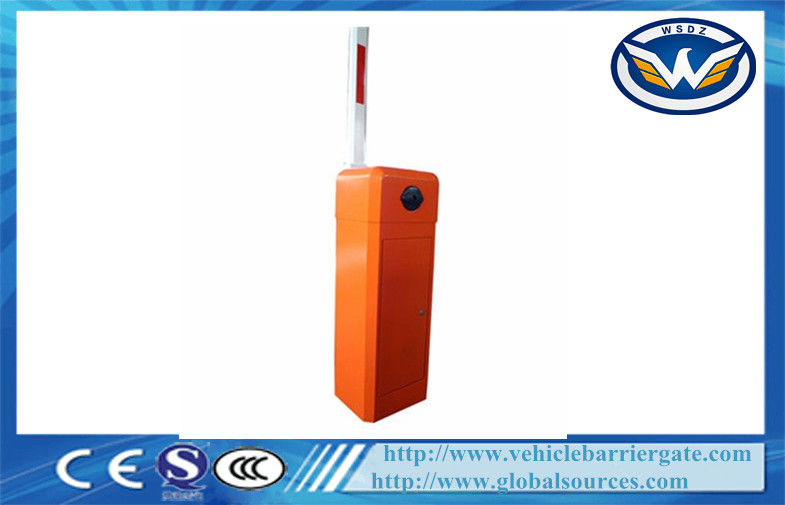

Wireless High Speed Traffic Barrier Gate With Remote Control Switch

  • Wireless High Speed Traffic Barrier Gate With Remote Control Switch
Miejsce pochodzenia China
Nazwa handlowa WONSUN
Orzecznictwo CE, ISO, SGS
Numer modelu WST-115
Minimalne zamówienie 1 SZT.
Cena negotiation
Szczegóły pakowania Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Czas dostawy 3-7 dni roboczych po otrzymaniu płatności
Zasady płatności T / T, Western Union, Money Gram, Alibaba Trade Assurance, Paypal itp.,
Możliwość Supply 1000 zestawów / miesiąc

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Szczegóły Produktu
Nazwa Bezprzewodowy pilot zdalnego sterowania Przełącznik kontroli dostępu do bariery drogowej o dużej prę Napięcie znamionowe 220V±10%, 110V±10%, 50/60Hz
Wymiar obudowy 280*240*996mm Materiał ramienia Stop aluminium
Szerokość ramienia i wysokość 100 * 45 mm Odległość zdalnego sterowania ≥30m
High Light

parking barrier gates

,

road barrier gate
Zostaw wiadomość
opis produktu



Wireless High Speed Traffic Barrier Gate With Remote Control Switch







Basic Features:



1)By-security. the barrier gate will automatically go back when meet obstacles during closing.

2)AC motor is more powerful and no maintenance.

3)Barrier Boom/arm can be chosen from 3 meters to 6 meters, and barrier gate.

4)Closing time is also arranged from 1 second to 6 seconds.

5)The barrier gate can be both right-installed and left-installed.

6)All the operation process is soft without any noise and shaking.

7)Infrared photocell interface, loop detector interface and IC system.

8)interface are reserved for the other functions.

9)Green light and red light are used inside for indication the position of the boom





Advanced Features:

1)clutch key can be used to open the clutch when power off.

2)Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting, unique temperature calefaction design for low temperature using, prevent freezing in cold weather.

3)Exactitude aluminium alloy die-casting motor base reduce the noise and joint abrasion to prolong the barrier gate working life.




Model Selection and Differences



Wireless High Speed Traffic Barrier Gate With Remote Control Switch 0




Specifications



Model

WST1211

Working Temperature

-40℃～+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44




Communication with customers

1)     Q: Connected power and press open/close button but traffic barrier gate no action?



A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?


A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but traffic barrier gate arm no action?


A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?


A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal position



Why choose us?

1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.
