Szczegóły produktu
Place of Origin: China
Nazwa handlowa: WONSUN
Orzecznictwo: CE
Model Number: DZ-138
Warunki płatności i wysyłki
Minimalne zamówienie: 1 SZT.
Cena: negocjowalne
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Czas dostawy: 3-7 dni roboczych po otrzymaniu płatności
Zasady płatności: T / T, Western Union, Money Gram, Trade Assurance, Paypal itp.,
Możliwość Supply: 1000 zestawów / miesiąc
Temperatura środowiska pracy: |
-40 ℃ ~ 75 ℃ |
Materiał obudowy: |
2,0 mm zimna stalowa płyta |
Napięcie znamionowe:: |
AC100V ~ AC264V, DC24V |
Dożywotni:: |
ponad 10 milionów lub 10 lat |
Czas operacji: |
0,3,0 ,6,0, 2,4sec |
Nazwa produktu: |
Inteligentne bariery dla silnika bramy silnikowej Inteligentny system barierowy silnika PMSM |
Temperatura środowiska pracy: |
-40 ℃ ~ 75 ℃ |
Materiał obudowy: |
2,0 mm zimna stalowa płyta |
Napięcie znamionowe:: |
AC100V ~ AC264V, DC24V |
Dożywotni:: |
ponad 10 milionów lub 10 lat |
Czas operacji: |
0,3,0 ,6,0, 2,4sec |
Nazwa produktu: |
Inteligentne bariery dla silnika bramy silnikowej Inteligentny system barierowy silnika PMSM |

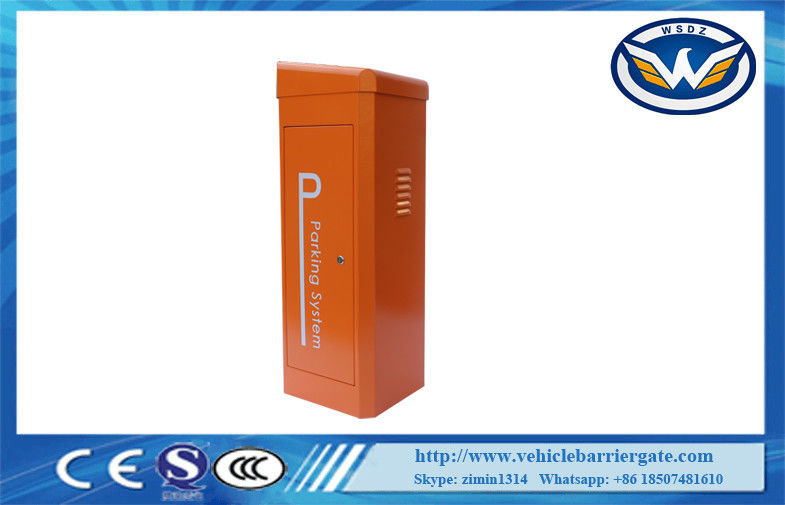

Intelligent Servo Motor Gate Barriers PMSM motor Intelligent Barrier System
Technical data:
| Model | DZ-138 automatic barrier gate |
| arm length: | 2000mm-6000mm |
| opening and closing time: | ≤ 0.6s, 0.9s, 2s, 4s |
| Rated voltage: | AC100V ~ AC264V, DC24V |
| Frequency: | 50Hz ~ 60Hz |
| Motor rated power: | 50W, the maximum power of 100W |
| Working environment temperature: | -40 ℃ ~ 75 ℃ |
| Power: | standby ≤ 8W, run ≤ 100W |
| Dimensions (W * D * H): | 342 * 312 * 959mm |
| Lifetime: | more than 10 million or 10 years |
| MTTR: | <0.5 hours |
| MTBF: | > 5 million times |
| Protection degree: | IP65 |
| Relative humidity: | ≤ 90% |
| Motor no-load speed: | 3000 r / min |
| Remote control distance: | ≤ 100 meters |
| Longest ARM length: | 6 meters |
| Output torque: | 0.86N.M * 140 = 120N.M. |
| running noise: | < 50dB |
| Barrier N.W | 42.6kg |
| Surface treatment | Outdoor metal powder, electrostatic spraying |
Our service:
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
FAQ:
A: We are factory.
A: Generally it is 3-5 days if the goods are in stock. or it is 7-8 days if the goods are not in stock, it is according to quantity.
How to Contact Seller?
Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. All products with CE certificate, 100% raw material.
Email: keira@wonsunbarrier.com
Whatsapp: +86 185 0748 1610
Skype: zimin1314
