Automatic Barrier gate:
Application:
parking lots, toll gates, goods yards, railway crossings, commercial
premises, aparment block access
Functions & Features:

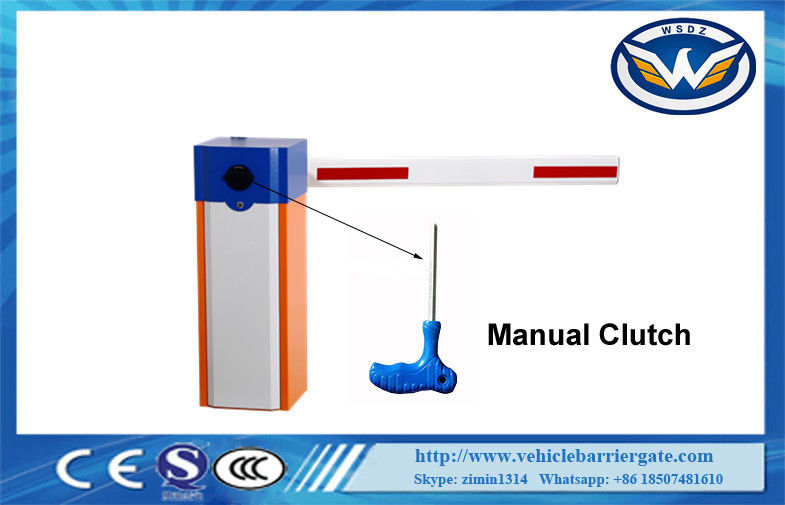

1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Technical Data:
Mode : WSTP-116
Running time: 1S,1.8S,3S,6S
Boom type: Straight, Fence ,folding
Max Boom length: 6m
Boom dimension (WxH): 45x80mm swing out boom
Voltage: 220V ± 10%, 110V ± 10%
Frequency: 50/60Hz
Motor voltage: 220V
Power: 120W
Working temperature: -40~75
Protection grade: IP54
