Szczegóły produktu
Place of Origin: China
Nazwa handlowa: WONSUN
Orzecznictwo: CE, ISO, SGS
Model Number: WSTV-410
Warunki płatności i wysyłki
Minimalne zamówienie: 1 SZT.
Cena: negocjowalne
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Czas dostawy: 3-7 dni roboczych po otrzymaniu płatności
Zasady płatności: T / T, Western Union, Money Gram, Trade Assurance, Paypal itp.,
Możliwość Supply: 1000 zestawów / miesiąc
Supply voltage: |
24V 12V |
Signal holding time: |
Unlimited |
Sensitivity: |
Adjustable in 3 increments |
Operating temperature: |
220℃ to +65℃ |
Reaction time: |
100ms |
Size of Housing: |
78x36x85 mm |
Supply voltage: |
24V 12V |
Signal holding time: |
Unlimited |
Sensitivity: |
Adjustable in 3 increments |
Operating temperature: |
220℃ to +65℃ |
Reaction time: |
100ms |
Size of Housing: |
78x36x85 mm |

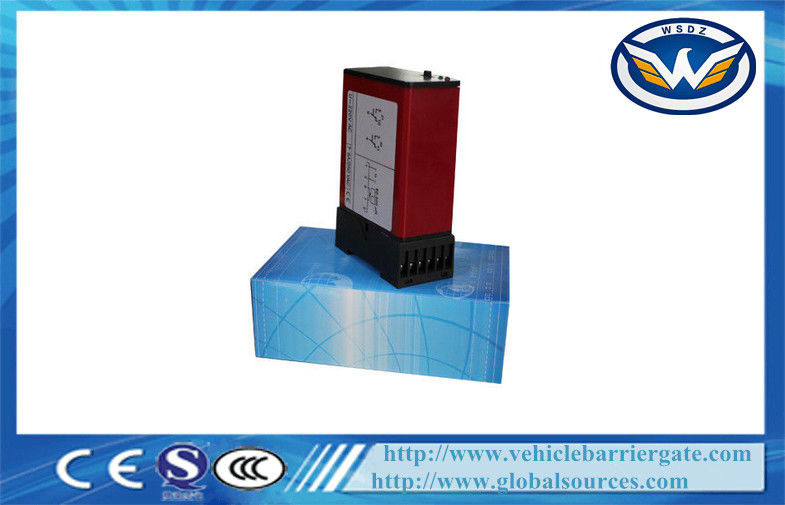

Intelligent Vehicle Loop Detector For Parking System
Quick Detail:
vehicle loop detector
Single/double vehicle loop detector is used for wherever vehicles have to be detected, for example for monitoring and safe-guarding accessways or for counting vehicles. The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems or activating card dispensers in parking lots.
Specification:
| Supply power | AC 110V/220V, ±10%, 50/60HZ , DC 12V |
| Consuming power | Normal 1.0W, Operation 3.6W |
| Operating temperature | -20 -±50C, Humidity 30%-85% |
| Size | 105mm(H) × 75mm(W) ×41mm(D) |
| Quality of material | Aluminum |
| Weight | 342g |
Function:
1) Detection Method : Pass detection mode( Frequency change mode)
2) Detection Range : All of vehicle
3) Sensing Range : LOOP COIL width over vehicle space distance
4) Detection Speed : 0Km-180Km/h
5) Sensitivity: High sensitivity - Low sensitivity ( 8 Level)
6) Alignment : Automatic alignment system
7) Timer Function : 0-14 Second control the time by option
8) Reset Function : Reset bottom when error occur (Automatic:30 SEC, Manual:Option)
9) Output Singnal : NO power relay ( short or long point of contact)
