Szczegóły produktu
Place of Origin: China
Nazwa handlowa: WONSUN
Orzecznictwo: CE, ISO, SGS
Model Number: WSTP-115B
Warunki płatności i wysyłki
Minimalne zamówienie: 1 SZT.
Cena: negocjowalne
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Czas dostawy: 3-7 dni roboczych po otrzymaniu płatności
Zasady płatności: T / T, Western Union, Money Gram, Trade Assurance, Paypal itp.,
Możliwość Supply: 1000 zestawów / miesiąc
Working temperature:: |
-40°to 75° |
RS485: |
YES |
Force: |
heavy duty |
arm type: |
straight articulated, fence |
Power Supply:: |
AC 220±10%, 110±10% 50/60HZ |
motor material: |
die-casted alluminium alloy |
Working temperature:: |
-40°to 75° |
RS485: |
YES |
Force: |
heavy duty |
arm type: |
straight articulated, fence |
Power Supply:: |
AC 220±10%, 110±10% 50/60HZ |
motor material: |
die-casted alluminium alloy |

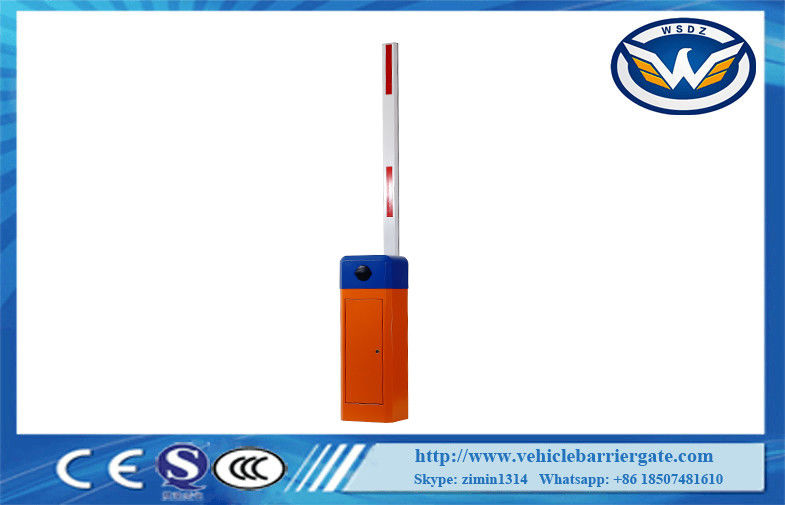

RS485 alluminium alloy Car Park Barriers For Toll System , automatic vehicle barrier
Application:
Traffic access control for parking lots, toll gate, goods yard, railway crossing, commercial premise, apartment block access and so on.
Specifications:
Car Park barrier:
1.automatic and Intelligent
2.silent,heavy duty,steady, durable
3.vehicle or pedestrian control
Basic Features:
1. By-security. The barrier gate will automatically reverse when meeting obstacles during closing.
2. AC motor is more powerful and no maintenance.
3. Barrier Beam/arm can be chosen from 3 meters to 6 meters
4. closing time is also arranged from 1 second to 6 seconds.
5. Installation Direction of the boom can be chosen——right-installed or left-installed
6. All the operation process is soft without any noise and shaking.
7. Infrared photocell interface, Loop detector interface and IC system
8. interface are reserved for the other functions.
Advanced Features:
1. Clutch key can be used to open the clutch when power off.
2. Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting. Unique temperature calefaction design for low temperature using, prevent freezing in cold weather.
3. Exactitude aluminum alloy die-casting motor base reduce the noise and joint abrasion to prolong the barrier gate working life.
4. Thimble type motor worm design for preventing plugging up in using.
5. Balance spring no noise and easy adjusting design
6. Double limit methods (electronic limit and motor sensor memory limit) for beam rises and falls.
Technical Data:
| Running time | 1sec | 3 sec | 6sec | 3 sec | 6 sec | 3 sec | 6sec | 6 sec | 6 sec |
| Boom type | straight | 90 degree folding | 180 degree folding | 2 fencing | 3 fencing | ||||
| Max boom length | 3m | 4.5m | 6m | 3m | 5m | 3m | 5m | 4.5m | 4m |
| Boom dimension(w*h) | 40*80mm | 45*100mm | |||||||
| Boom weight | 3kg | 4.5kg | 6kg | 6.5kg | 8kg | 9kg | 11kg | 7kg | 7.5kg |
| Voltage | 220V±10%, 110V±10% | ||||||||
| Frequency | 50/60 Hz | ||||||||
| Motor voltage | 220V | ||||||||
| power | 80W | ||||||||
| Working temperature |
-35centigrade +75centigrade |
||||||||
| Protection grade |
IP54 |
||||||||
OEM Service:
The orginal color of this model is orange. However we also provide color option for you according to your own need.
