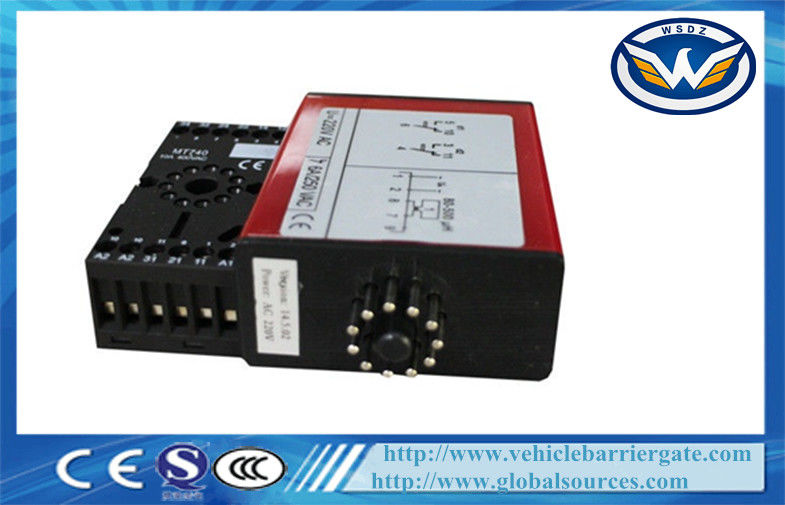

Parking Lot Vehicle Loop Detector
| Place of Origin | China |
|---|---|
| Nazwa handlowa | WONSUN |
| Orzecznictwo | CE, ISO, SGS |
| Model Number | WSTV-410 |
| Minimalne zamówienie | 1 SZT. |
| Cena | negotiation |
| Packaging Details | Packed in bubble wrap firstly, and then reinforced with carton for outer packing. |
| Czas dostawy | 3-7 dni roboczych po otrzymaniu płatności |
| Zasady płatności | T / T, Western Union, Money Gram, Alibaba Trade Assurance, Paypal itp., |
| Możliwość Supply | 1000 zestawów / miesiąc |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xSzczegóły Produktu
| Napięcie zasilania | 24v 12v | Czas utrzymywania sygnału | Nieograniczony |
|---|---|---|---|
| WRAŻLIWOŚĆ | Regulowany w 3 krokach | temperatura robocza | 220℃ do +65℃ |
| czas reakcji | 100ms | Wielkość mieszkania | 78x36x85 mm |
| High Light | traffic loop detectors,loop vehicle detector |
||
opis produktu
Single Channel Vehicle Loop Detector For Car Park Management And Toll System
Quick Detail:
vehicle loop detector
- Easy installation
- Compatible with parking system
- Single loop and double loop
- Two relay out
Single/double vehicle loop detector is used for wherever vehicles have to be detected, for example for monitoring and safe-guarding accessways or for counting vehicles. The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems or activating card dispensers in parking lots.
Applications:
1. WSTV-410 :single channel; WSTV-401:double channel
2. Operating temp.: -30C~ +75C
3. Storage temp.: -40C~ +85C
4. Relative humidity: ≤95%
5. Shell: PC + ABS engineering plastics
6. Installation: DIN rail
7. Dimensions: 110×60×100 mm (L×W×H)
8. Net Weight: 400g
9. Operating voltages:AC220V±10%
10. Power consumption: 5W
11. Relay output: DC24V /3A
13. Frequency range: 20kHz 170kHz4 grades adjustable
14. Reaction time: 20 ms
15. Output Relay:output
16. Connection: 11-pin socket
17. Sensitivity: 10 grades adjustable
18. Loop inductance: Ideal 100µH300µH(include connecting wiring); Max 50µH1000µH(include
connecting wiring)
19. Loop conn. Wiring: Max 100m, twisted at least 20 times per meter, total resistance <10
Ohm
20. Automatic calibration time:2s~ 5s
The loop detectors must only be placed in dry rooms or control cabinets that are protected against
all types of moisture and wetness. A distance of at least 10 mm from other devices must be maintained
on each side. The ambient temperature must not exceed 65° C. The installation of the induction loop is
described in other operating instructions. The loop detectors must only be placed in dry rooms or control cabinets that are protected against all types of moisture and wetness. A distance of at least 10 mm from
other devices must be maintained on each side. The ambient temperature must not exceed 65° C.
The installation of the induction loop is described in other operating instructions.
